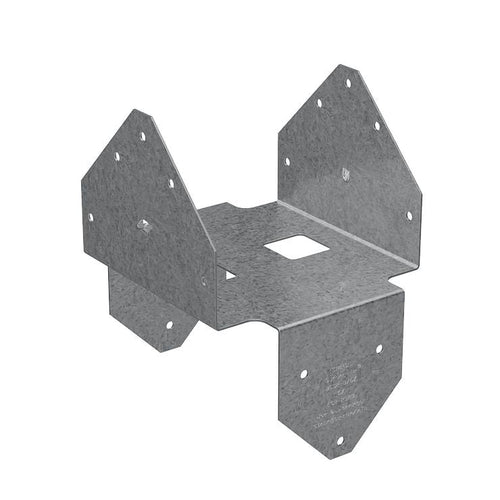

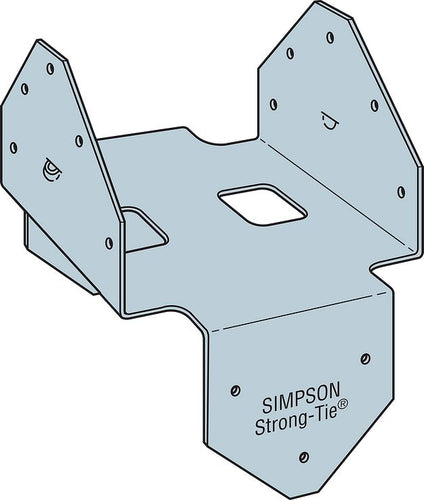

Simpson Strong-Tie BCS Post Cap w/ Double-Shear Nailing

Simpson Strong-Tie Company

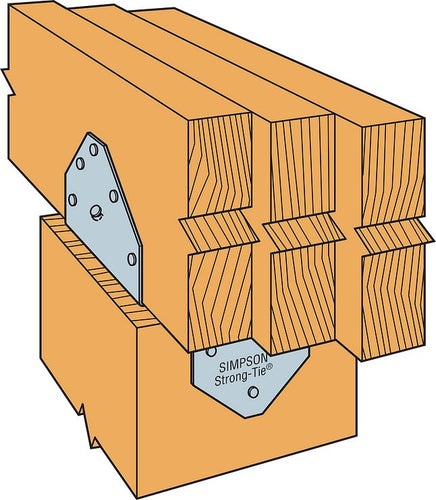

The BCS is designed to connect a multi-ply member beam to a post. The dimensions of this post cap accommodate the narrower width of multiple 2x members on top of the post. The BCS provides both lateral and uplift support and features double-shear nailing that distributes the load through two points for optimal strength.

Key Features

  • Opposing flanges provide increased lateral resistance
  • Double-shear nailing for optimal strength
  • Sized specifically for multi-2x widths

Finish

  • Galvanized, ZMAX® coating, or stainless steel; see Corrosion Information

Installation

  • Use all specified fasteners; see General Notes
  • Do not install bolts into pilot holes
  • Install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads
