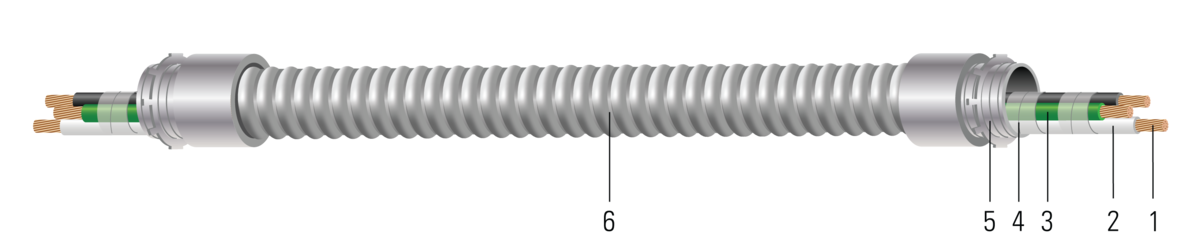

Southwire 14-3SOL Lite-Whip 3/8"FMC-RWS 6' Black/White/Green Lock-Nut 15 EA

Southwire

Options

Conductor:Class B compressed stranded copper per ASTM B3 and ASTM B8
Insulation:All phases are insulated with Polyvinyl Chloride with Nylon Sheath Type THHN/THWN
Ground: Green insulated copper ground
Binder:Binder tape bearing the print legend is wrapped around the cable assembly
Connector:Zinc die-cast locknut or snap-in connector
Armor:Steel Interlocked Armor

Standards & References

ASTM B8 Concentric-Lay-Stranded Copper Conductors
UL 83 Thermoplastic Insulated Wires and Cables
UL 1569 Metal-Clad Cables
UL 1479 Standard for Safety Fire Tests of Penetration Firestops
UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
Buy American: Compliant with Buy American Requirements, found in 49 U.S.C. § 5323(j); specify “Made in the USA Only!” when ordering to ensure your project receives American made products.

Application & Features

Southwire EZ QUICK™ Modular Cable Assemblies are suitable for use as follows:

Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
Fished or embedded in plaster.
Concealed or exposed installations.
Environmental air-handling spaces per NEC 300.22 (C).
Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
Installation in cable tray and approved raceways.
Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2)
Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.

Southwire EZ QUICK™ Modular Cable Assemblies - meets or exceeds the following requirements:

Southwire EZ QUICK™ Modular Cable Assemblies Features:

Reduces installation costs up to 50% over pipe and wire.
Lightweight aluminum armor--as much as 45% lighter than steel MC Cable.
Better grounding performance than Type AC
Pre-cut lengths eliminate on-site preparation and save installation and clean up time.
Pre-stripped conductors increase jobsite safety
UL Listed snap-in fittings applied to each end
UL Classified 1, 2, and 3 hour Through Penetration Firestop Systems: W-J-3037, W-L-3110, W-L-3113, W-L-3117, W-L-3120, W-L-3121, W-L-3160, C-AJ-3115, C-AJ-3140, C-AJ-3142, C-AJ-3145, C-AJ-3173, C-AJ-3202, C-AJ-4065, C-AJ-4066, F-C-3038.
Cable reverse wound on reel for ease of pulling and installation. When pulling from coils, pull from inside to ensure ease of installation.
Anti-short bushings are not required for use with MC cable per the NEC and UL
